# 便利店支付(OTC)

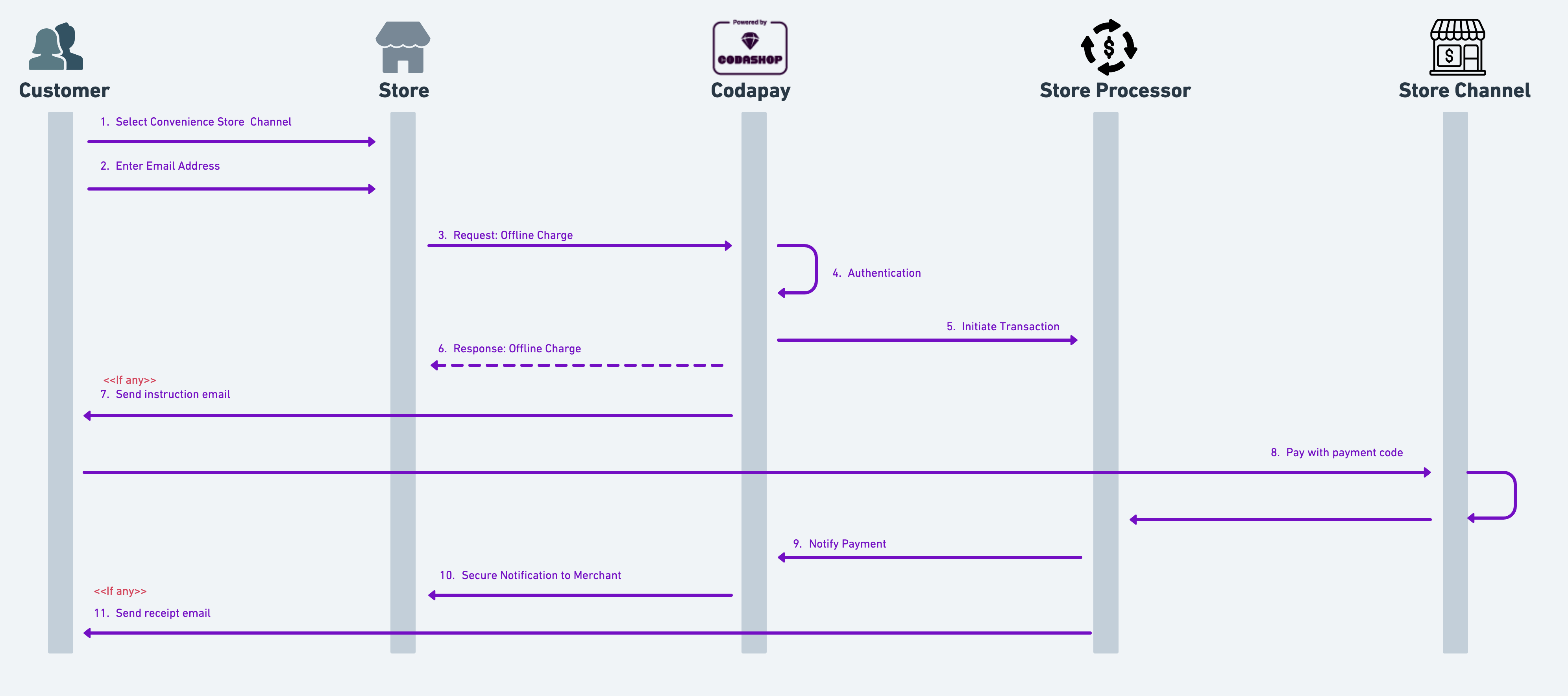

## 便利店支付(OTC)调用流程

使用便利店支付方式，客户可以在便利店或其他指定的支付柜台完成支付。商家将在Profile字段中接收到一个唯一的支付代码，客户在支付时将此代码出示给柜台。

有关更多详情，请参阅响应表中的Profile字段中的便利店信息。

<figure><img src="/files/9kDgsCzlRPiNIGvrePLe" alt=""><figcaption></figcaption></figure>

## 请求参数

<table><thead><tr><th width="148">参数</th><th width="95">类型</th><th width="116">长度</th><th>描述</th></tr></thead><tbody><tr><td>api_key</td><td>String</td><td>256</td><td><strong>必填</strong><br>Coda提供的API密钥 - 请参考 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解如何获取。</td></tr><tr><td>project_id</td><td>String</td><td>10</td><td><strong>此字段仅适用于 v2.0 API，必填项</strong><br>由 Coda 提供的 Project ID，对每个标题产品都是唯一的。<br>请参阅 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解</td></tr><tr><td>order_id</td><td>String</td><td>64</td><td><p><strong>必填</strong></p><p>您在支付请求发起时传递的订单ID</p></td></tr><tr><td>country</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>ISO 3166 的国家代码 <a data-mention href="/pages/7B3qZnefeSwkSs84sKuB">/pages/7B3qZnefeSwkSs84sKuB</a></td></tr><tr><td>lang</td><td>String</td><td>2</td><td><p><strong>必填</strong></p><p><a data-mention href="/pages/lumiE4ZV7er3NqdusLTc">/pages/lumiE4ZV7er3NqdusLTc</a></p></td></tr><tr><td>type</td><td>Number</td><td>1</td><td><p>1：数字内容物品</p><p>2：非数字内容物品</p></td></tr><tr><td>pay_type</td><td>Number</td><td>1</td><td><p><strong>必填</strong></p><p>便利店支付使用 <code>pay_type = 3</code>。<br><br>更多详情请参阅 <a data-mention href="/pages/9qMfw9ltzzDp2UjOhCld">/pages/9qMfw9ltzzDp2UjOhCld</a></p></td></tr><tr><td>pay_channel</td><td>Number</td><td>3</td><td>每个支付渠道的代码。</td></tr><tr><td>pay_at</td><td>Number</td><td>2</td><td><p>此字段指示客户应在哪里完成购买。</p><p></p><p>1 = 银行柜台<br>2 = 网络银行<br>3 = 在线账单支付<br>4 = 电子钱包<br>5 = 自动取款机<br>14 = 便利店</p></td></tr><tr><td>msisdn</td><td>Number</td><td>15</td><td><p><strong>可选</strong><br>MSISDN（未格式化；不包含国家代码）</p><p></p><p>仅在需要 MSISDN 而非电子邮件时包含此项。</p></td></tr><tr><td>merchant_name</td><td>String</td><td>128</td><td><p><strong>可选</strong><br>如果您希望指定商家名称，请在此字段中输入名称。</p><p><br>默认值为空。</p></td></tr><tr><td>items</td><td>Number</td><td>N/A</td><td><p><strong>必填</strong></p><p>用户购买的商品列表</p></td></tr><tr><td>items[].code</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商家的商品代码</p></td></tr><tr><td>items[].name</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商品名称，仅支持拉丁字符</p></td></tr><tr><td>items[].price</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>已含税的商品价格（已含税），以请求中指定的货币计价</td></tr><tr><td>items[].type</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>默认值=1</td></tr><tr><td>profile</td><td>Map</td><td>N/A</td><td><strong>必填</strong><br><a data-mention href="#profile-zi-duan">#profile-zi-duan</a></td></tr></tbody></table>

## Profile 字段

<table><thead><tr><th width="146">参数</th><th width="106">类型</th><th width="110">长度</th><th>描述</th></tr></thead><tbody><tr><td>user_id</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>客户的用户 ID</p></td></tr><tr><td>client_ip</td><td>String</td><td>15</td><td><strong>可选</strong><br>客户的 IP 地址 (仅支持IPv4)</td></tr><tr><td>name</td><td>String</td><td>128</td><td><strong>可选</strong><br>客户姓名</td></tr></tbody></table>

### 请求示例

{% tabs %}
{% tab title="v2.0 带id\_no的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 AP
  "country": "360",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "3",
  "pay_channel": "100",
  "pay_at": "14",
  "email": "test@codapayments.com",
  "items": [
    {
      "code": "1",
      "name": "Test Item",
      "price": 1000.0
    }
  ],
  "profile": {
    "user_id": "12345",
    "id_no": "27634752215"
  }
}
```

{% endtab %}

{% tab title="v2.0 带 MSISDN 和type的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "360",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "3",
  "pay_channel": "100",
  "pay_at": "14",
  "msisdn": "<Your number>",
  "email": "test@codapayments.com",
  "items": [
    {
      "code": "1",
      "name": "Test Item",
      "price": 1000.0
    }
  ],
  "profile": {
    "user_id": "12345",
  }
}
```

{% endtab %}

{% tab title="v1.0 带id\_no的示例" %}

```json
{
    "api_key":"YOUR API KEY",
    "order_id":"123456",
    "lang":"en",
    "merchant_name":"Koko eBooks"
    "pay_type":"3",
    "pay_channel":"100",
    "pay_at":"14",
    "email":"user@email.com",
    "items":[
        {
            "code": "1",
            "name": "One Day",
            "price": 3
        }
    ],
    "profile":{
        "user_id":"12345",
        "name": "user full name",
        "id_no": "27634752215"
    }
}
```

{% endtab %}

{% tab title="v1.0 带 MSISDN 和type的示例" %}

```json
{
    "api_key":"YOUR API KEY",
    "order_id":"123456",
    "lang":"en",
    "merchant_name":"Store",
    "pay_type":"3",
    "pay_channel":"67",
    "pay_at":"14",
    "type":"1",
    "email":"test@youremail.com",
    "msisdn":"",


    "items":[{
        "code":"456789",
        "name":"GameCredit",
        "price":1000.00
    }],
    "profile":{"user_id":"12345"}
}
```

{% endtab %}
{% endtabs %}

## 响应参数

<table><thead><tr><th width="153.33333333333331">参数</th><th width="141">类型</th><th width="94">长度</th><th>描述</th></tr></thead><tbody><tr><td>result_code</td><td>Number</td><td>N/A</td><td><p>ResultCode将帮助指示交易的状态。<br></p><p><code>ResultCode = 0</code> 表示交易成功。<br><br>错误代码列表请参阅 <a data-mention href="/pages/Ijfanb3Eb2mtXRsbF81n">/pages/Ijfanb3Eb2mtXRsbF81n</a></p></td></tr><tr><td>result_desc</td><td>String</td><td>512</td><td>如果resultCode返回错误，则该值描述错误信息。</td></tr><tr><td>txn_id</td><td>Number</td><td>N/A</td><td>支付请求发起返回的Coda订单ID。</td></tr><tr><td>txn_timeout</td><td>Number</td><td>N/A</td><td>交易超时时间（分钟）</td></tr><tr><td>total_price</td><td>Number</td><td>N/A</td><td>用户支付的总金额，以本地货币计价。</td></tr><tr><td>pay_instructions</td><td>String</td><td>15</td><td>如果响应返回了此值，商家应在页面上向客户显示提供的支付指引。</td></tr><tr><td>profile</td><td>Number</td><td>N/A</td><td>请参考 <a data-mention href="#profile-zi-duan-1">#profile-zi-duan-1</a></td></tr></tbody></table>

## Profile 字段

<table data-full-width="false"><thead><tr><th width="173">参数</th><th width="133">类型</th><th width="100.33333333333331">长度</th><th>描述</th></tr></thead><tbody><tr><td>extInfoByte</td><td>Number</td><td>N/A</td><td>请忽略此字段。</td></tr><tr><td>payment_code</td><td>Number</td><td>N/A</td><td>由支付渠道生成的代码。</td></tr><tr><td>user_id</td><td>Number</td><td>N/A</td><td>客户的用户 ID</td></tr><tr><td>id_no</td><td>String</td><td>N/A</td><td>客户的身份证号。</td></tr><tr><td>name</td><td>String</td><td>N/A</td><td>客户姓名</td></tr><tr><td>redirect_url</td><td>String</td><td>128</td><td>仅当所选支付渠道遵循重定向 URL 流程时，才返回支付网关的重定向 URL。</td></tr></tbody></table>

## 响应示例

{% tabs %}
{% tab title="正常示例" %}

```json
{
    "txn_id": 1234567890,
    "txn_timeout": 14399,
    "result_code": 431,
    "total_price": 3.0,
    "pay_instructions": "",
    "profile": {
        "extInfoByte": "0",
        "redirect_url":
           "https://sample_URL.com",
        "payment_code": "",
        "extInfoByte": "0",
        "user_id": "12345",
        "id_no": "27634752215",
        "name": "user full name"
    }
}
```

{% endtab %}

{% tab title="带不同profile字段示例" %}

```json
{
   "txn_id": 1234567890,
   "txn_timeout": 7260,
   "result_code": 431,
   "result_desc": "You will be notified when it has been completed. For help,
        contact email or 180011161214.",
   "total_price": 1000,
   "pay_instructions":
            "Please check your email for detailed instructions on completing your payment",
   "profile":    {
      "SurchargeDiscount_251": "0.0",
      "TotalPrice_251": "1000.0",
      "payment_code": "",
      "SurchargeDiscount_253": "0.0",
      "TotalPrice_253": "1000.0",
      "user_id":"12345"
   }
}
```

{% endtab %}
{% endtabs %}

{% hint style="warning" %} <mark style="color:orange;">**USD 订单交易参考**</mark>

请查看[此指南](https://coda-payments.gitbook.io/zhong-wen-coda-private-technical-documentation/codapay/hou-duan-api-ji-cheng/usd-mei-jin)，了解更多关于 USD 交易的信息。
{% endhint %}


---
