# 代金券（现金卡）

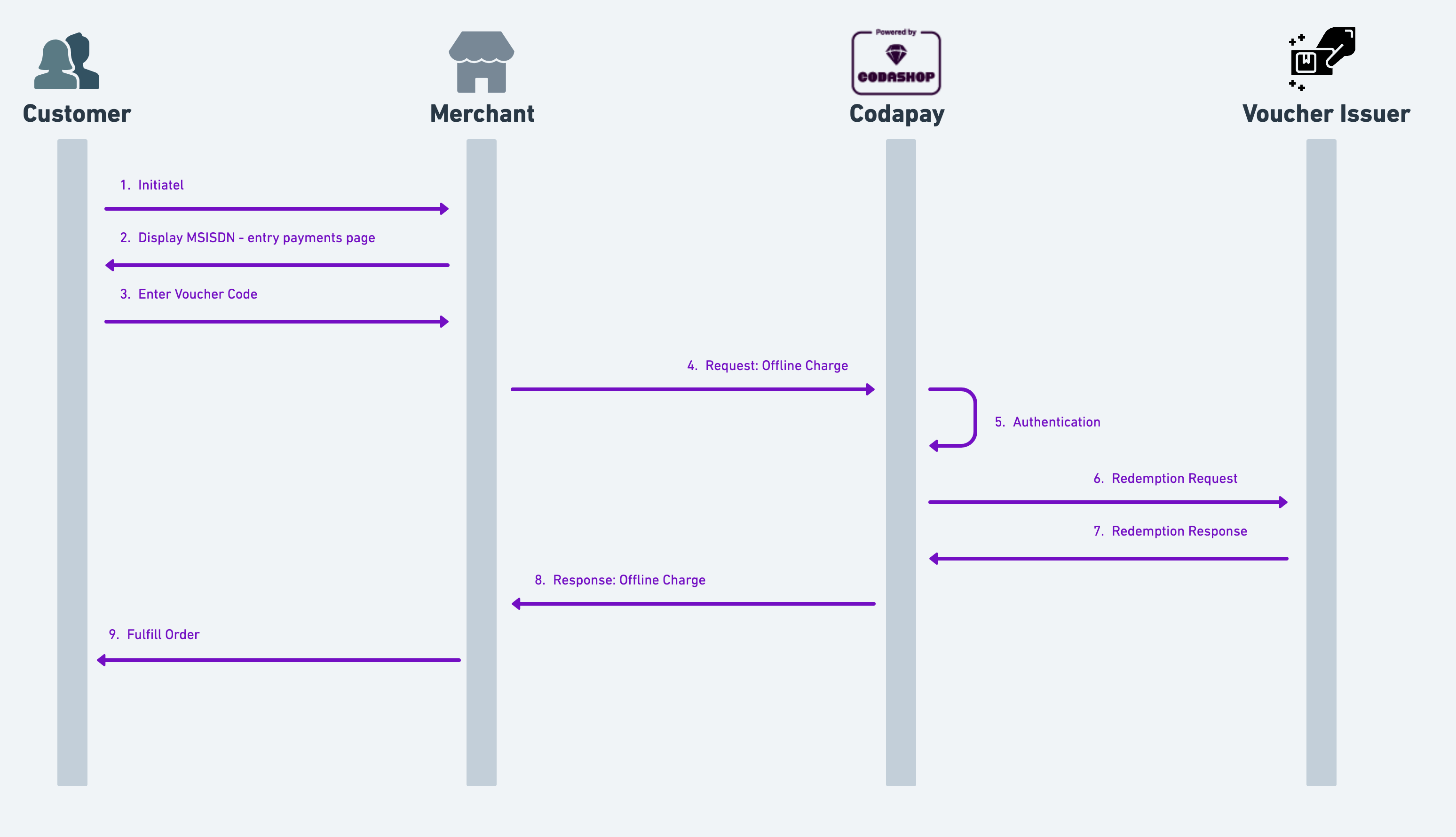

## 代金券调用流程

代金券支付方式允许客户在商家的网站通过 Codapay 兑换代金券代码。Codapay 会实时记录已完成的支付，并立即通知商家。有关代金券的详细信息，请参阅请求表中Profile字段的代金券部分。

对于代金券交易，代金券的金额仅在兑换后确认；商家需要验证 Coda API 响应中返回的净金额，并能够处理所有可用面额的兑换。

<figure><img src="/files/h1J69Fc7McKrFVintCIV" alt=""><figcaption></figcaption></figure>

## 请求参数

<table><thead><tr><th width="148">参数</th><th width="95">类型</th><th width="116">长度</th><th>描述</th></tr></thead><tbody><tr><td>api_key</td><td>String</td><td>256</td><td><strong>必填</strong><br>Coda提供的API密钥 - 请参考 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解如何获取。</td></tr><tr><td>project_id</td><td>String</td><td>10</td><td><strong>此字段仅适用于 v2.0 API，必填项</strong><br>由 Coda 提供的 Project ID，对每个标题产品都是唯一的。<br>请参阅 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解</td></tr><tr><td>order_id</td><td>String</td><td>64</td><td><p><strong>必填</strong></p><p>您在支付请求发起时传递的订单ID</p></td></tr><tr><td>country</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>ISO 3166 的国家代码 <a data-mention href="/pages/7B3qZnefeSwkSs84sKuB">/pages/7B3qZnefeSwkSs84sKuB</a></td></tr><tr><td>lang</td><td>String</td><td>2</td><td><p><strong>必填</strong></p><p><a data-mention href="/pages/lumiE4ZV7er3NqdusLTc">/pages/lumiE4ZV7er3NqdusLTc</a></p></td></tr><tr><td>type</td><td>Number</td><td>1</td><td><p>1：数字内容物品</p><p>2：非数字内容物品</p></td></tr><tr><td>pay_type</td><td>Number</td><td>1</td><td><p><strong>必填</strong></p><p>代金券使用 <code>pay_type = 4</code>。</p><p><br>更多详情请参阅 <a data-mention href="/pages/9qMfw9ltzzDp2UjOhCld">/pages/9qMfw9ltzzDp2UjOhCld</a></p></td></tr><tr><td>pay_channel</td><td>Number</td><td>3</td><td>每个支付渠道的代码。</td></tr><tr><td>merchant_name</td><td>String</td><td>128</td><td><p><strong>可选</strong><br>如果您希望指定商家名称，请在此字段中输入名称。</p><p><br>默认值为空。</p></td></tr><tr><td>items</td><td>ItemInfo</td><td>N/A</td><td><p><strong>必填</strong></p><p>用户购买的商品列表</p></td></tr><tr><td>items[].code</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商家的商品代码</p></td></tr><tr><td>items[].name</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商品名称，仅支持拉丁字符</p></td></tr><tr><td>items[].price</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>已含税的商品价格（已含税），以请求中指定的货币计价</td></tr><tr><td>items[].type</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>默认值=1</td></tr><tr><td>profile</td><td>Map</td><td>N/A</td><td><strong>必填</strong><br><a data-mention href="#profile-zi-duan">#profile-zi-duan</a></td></tr></tbody></table>

## Profile 字段

<table data-full-width="false"><thead><tr><th width="168">参数</th><th width="117">类型</th><th width="109">长度</th><th width="285">描述</th></tr></thead><tbody><tr><td>voucher_code</td><td>String</td><td>20</td><td><strong>必填</strong><br>代金券代码。</td></tr><tr><td>voucher_pin</td><td>String</td><td>20</td><td><strong>必填</strong><br>代金券 PIN。</td></tr><tr><td>card_type</td><td>String</td><td>N/A</td><td><strong>可选</strong><br>默认使用 <code>"card_type":"0"</code></td></tr></tbody></table>

### 请求示例

<table><thead><tr><th width="153.33333333333331">参数</th><th width="141">类型</th><th width="94">长度</th><th>描述</th></tr></thead><tbody><tr><td>result_code</td><td>Number</td><td>N/A</td><td><p>ResultCode将帮助指示交易的状态。</p><p><code>ResultCode = 0</code> 表示交易成功。</p><p><code>ResultCode = 431 或 216</code> 表示交易待处理</p><p>所有其他ResultCode值表示交易失败。您可以在<a href="https://coda-payments.gitbook.io/zhong-wen-coda-private-technical-documentation/codapay/can-kao-zi-liao/chang-jian-cuo-wu-dai-ma">这里</a>找到完整的错误代码及其解释。</p></td></tr><tr><td>result_desc</td><td>String</td><td>512</td><td>如果resultCode返回错误，则该值描述错误信息。</td></tr><tr><td>txn_id</td><td>Number</td><td>N/A</td><td>从支付请求发起返回的Coda订单ID。</td></tr><tr><td>txn_timeout</td><td>Number</td><td>N/A</td><td>交易超时时间（分钟）。</td></tr><tr><td>total_price</td><td>Number</td><td>N/A</td><td><p>未格式化的数字值。</p><p></p><p>对于<strong>印度尼西亚、智利、韩国、台湾和越南的货币</strong>，不支持小数。</p></td></tr><tr><td>pay_instructions</td><td>String</td><td>15</td><td>如果响应返回了此值，商家应在页面上向客户显示提供的支付指引。</td></tr><tr><td>profile</td><td>Number</td><td>N/A</td><td>请参考<a href="#profile-field-li-de-other-details">此处</a></td></tr></tbody></table>

{% tabs %}
{% tab title="v2.0 示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "410",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "ko",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "4",
  "pay_channel": "-148",
  "items": [
    {
      "code": "7",
      "name": "Test Item",
      "price": 500.0
    }
  ],
  "profile": {
    "voucher_code": "-",
    "voucher_pin": "-"
  }
}
```

{% endtab %}

{% tab title="v1.0 示例" %}

```json
{
    "api_key":"<YOUR API KEY>",
    "order_id":"<Your Order ID)",
    "lang":"en",
    "merchant_name":"ebooks",
    "pay_type":"4",
    "pay_channel":"340",
    "type":"1",
    "profile":{
        "voucher_code":"12345678901231",
        "voucher_pin":"",
        "card_type":"0",
        "user_id":"12345"
    }
}
```

{% endtab %}
{% endtabs %}

## 响应参数

<table><thead><tr><th width="153.33333333333331">参数</th><th width="141">类型</th><th width="94">长度</th><th>描述</th></tr></thead><tbody><tr><td>result_code</td><td>Number</td><td>N/A</td><td><p>ResultCode将帮助指示交易的状态。<br></p><p><code>ResultCode = 0</code> 表示交易成功。<br><br>错误代码列表请参阅 <a data-mention href="/pages/Ijfanb3Eb2mtXRsbF81n">/pages/Ijfanb3Eb2mtXRsbF81n</a></p></td></tr><tr><td>result_desc</td><td>String</td><td>512</td><td>如果resultCode返回错误，则该值描述错误信息。</td></tr><tr><td>txn_id</td><td>Number</td><td>N/A</td><td>支付请求发起返回的Coda订单ID。</td></tr><tr><td>txn_timeout</td><td>Number</td><td>N/A</td><td>交易超时时间（分钟）</td></tr><tr><td>total_price</td><td>Number</td><td>N/A</td><td>用户支付的总金额，以本地货币计价。</td></tr><tr><td>pay_instructions</td><td>String</td><td>15</td><td>如果响应返回了此值，商家应在页面上向客户显示提供的支付指引。</td></tr><tr><td>profile</td><td>Number</td><td>N/A</td><td>请参考 <a data-mention href="#profile-zi-duan-1">#profile-zi-duan-1</a></td></tr></tbody></table>

## Profile 字段

<table data-full-width="false"><thead><tr><th width="169">参数</th><th width="165">类型</th><th width="107.33333333333331">长度</th><th>描述</th></tr></thead><tbody><tr><td>redirect_url</td><td>String</td><td>128</td><td>仅当所选支付渠道遵循重定向 URL 流程时，才返回支付网关的重定向 URL。</td></tr><tr><td>extInfoByte</td><td>String</td><td>128</td><td>请忽略此字段。</td></tr><tr><td>name</td><td>String</td><td>128</td><td>客户姓名。</td></tr><tr><td>payment_code</td><td>Number</td><td>N/A</td><td>由支付渠道生成的代码。</td></tr></tbody></table>

### 响应示例

{% tabs %}
{% tab title="示例" %}

```json
{
   "txn_id": <Coda Transaction ID>,
   "txn_timeout": 0,
   "result_code": 0,
   "total_price": 150,
   "profile":{"user_id":"12345"}
}
```

{% endtab %}
{% endtabs %}

{% hint style="warning" %}
&#x20;<mark style="color:orange;">**USD 订单交易参考**</mark>

请查看[此指南](https://coda-payments.gitbook.io/zhong-wen-coda-private-technical-documentation/codapay/hou-duan-api-ji-cheng/usd-mei-jin)，了解更多关于 USD 交易的信息。
{% endhint %}


---
