# 电子钱包

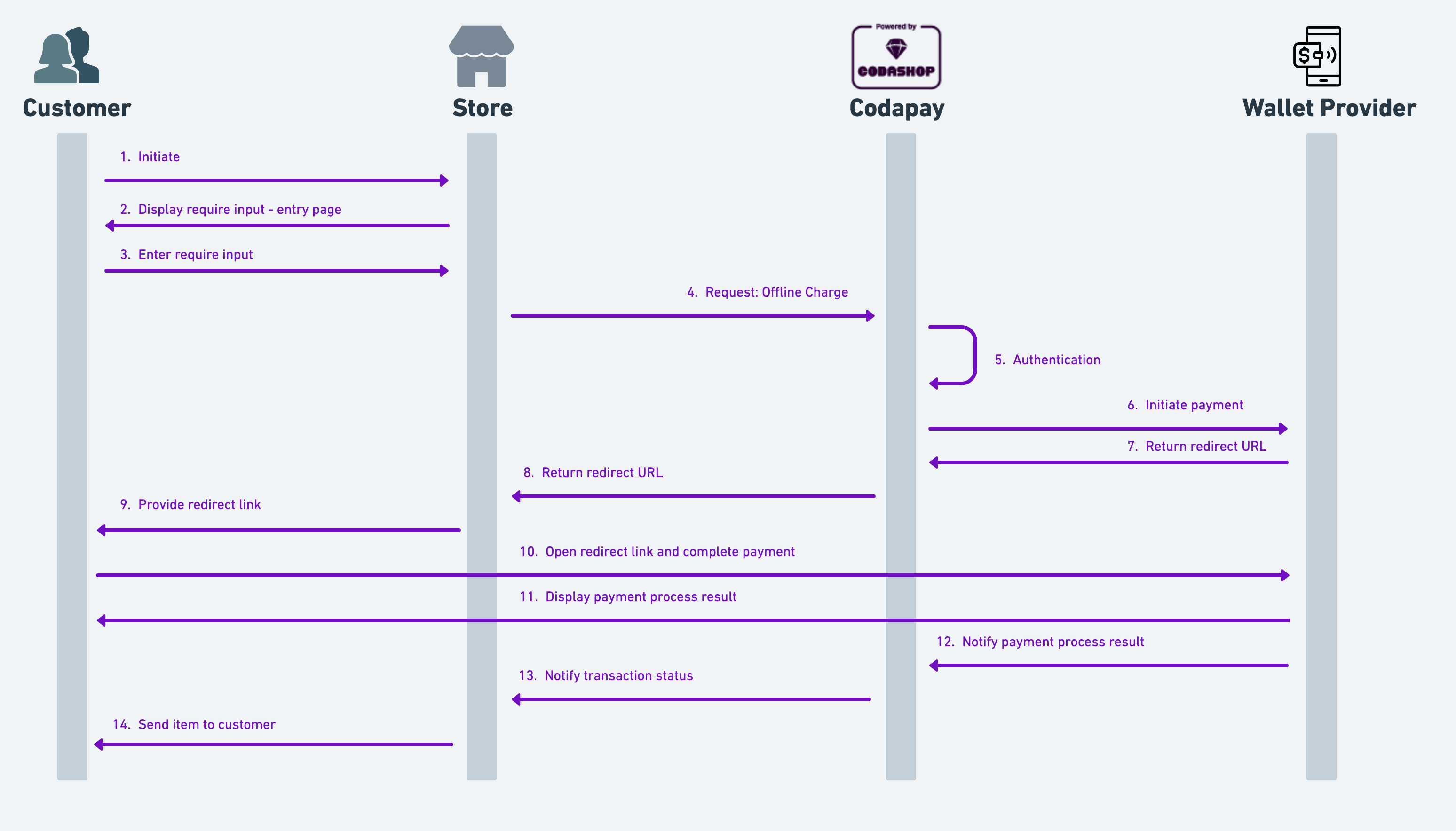

## 电子钱包调用流程

<figure><img src="/files/9wF6qPG2IGSZwfrLqImJ" alt=""><figcaption></figcaption></figure>

对于电子钱包支付类型，商家将收到一个重定向链接，供用户完成支付。通常这个链接要么是深度链接（直接打开钱包应用），要么是重定向页面，用户需要填写一些额外信息并授权支付。

## 请求参数

<table><thead><tr><th width="148">参数</th><th width="95">类型</th><th width="116">长度</th><th>描述</th></tr></thead><tbody><tr><td>api_key</td><td>String</td><td>256</td><td><strong>必填</strong><br>Coda提供的API密钥 - 请参考 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解如何获取。</td></tr><tr><td>project_id</td><td>String</td><td>10</td><td><strong>此字段仅适用于 v2.0 API，必填项</strong><br>由 Coda 提供的 Project ID，对每个标题产品都是唯一的。<br>请参阅 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解</td></tr><tr><td>order_id</td><td>String</td><td>64</td><td><p><strong>必填</strong></p><p>您在支付请求发起时传递的订单ID</p></td></tr><tr><td>country</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>ISO 3166 的国家代码 <a data-mention href="/pages/7B3qZnefeSwkSs84sKuB">/pages/7B3qZnefeSwkSs84sKuB</a></td></tr><tr><td>lang</td><td>String</td><td>2</td><td><p><strong>必填</strong></p><p><a data-mention href="/pages/lumiE4ZV7er3NqdusLTc">/pages/lumiE4ZV7er3NqdusLTc</a></p></td></tr><tr><td>type</td><td>Number</td><td>1</td><td><p>1：数字内容物品</p><p>2：非数字内容物品</p></td></tr><tr><td>pay_type</td><td>Number</td><td>1</td><td><p><strong>必填</strong></p><p>运营商支电子钱包使用 <code>pay_type = 5</code>。<br><br>更多详情请参阅 <a data-mention href="/pages/9qMfw9ltzzDp2UjOhCld">/pages/9qMfw9ltzzDp2UjOhCld</a></p></td></tr><tr><td>pay_channel</td><td>Number</td><td>3</td><td>每个支付渠道的代码。</td></tr><tr><td>pay_at</td><td>Number</td><td>2</td><td><p>此字段指示客户应在哪里完成购买。</p><p></p><p>1 = 银行柜台<br>2 = 网络银行<br>3 = 在线账单支付<br>4 = 电子钱包<br>5 = 自动取款机<br>14 = 便利店</p></td></tr><tr><td>msisdn</td><td>Number</td><td>15</td><td><p><strong>可选</strong><br>MSISDN（未格式化；不包含国家代码）</p><p></p><p>仅在需要 MSISDN 而非电子邮件时包含此项。</p></td></tr><tr><td>email</td><td>String</td><td>128</td><td>仅在需要电子邮件而非 MSISDN 时包含此项。</td></tr><tr><td>merchant_name</td><td>String</td><td>128</td><td><p><strong>可选</strong><br>如果您希望指定商家名称，请在此字段中输入名称。</p><p><br>默认值为空。</p></td></tr><tr><td>items</td><td>ItemInfo</td><td>N/A</td><td><p><strong>必填</strong></p><p>用户购买的商品列表</p></td></tr><tr><td>items[].code</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商家的商品代码</p></td></tr><tr><td>items[].name</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商品名称，仅支持拉丁字符</p></td></tr><tr><td>items[].price</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>已含税的商品价格（已含税），以请求中指定的货币计价</td></tr><tr><td>items[].type</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>默认值=1</td></tr><tr><td>profile</td><td>Map</td><td>N/A</td><td><strong>必填</strong><br><a data-mention href="#profile-zi-duan">#profile-zi-duan</a></td></tr></tbody></table>

## Profile 字段

<table><thead><tr><th width="199">参数</th><th width="106">类型</th><th width="110">长度</th><th>描述</th></tr></thead><tbody><tr><td>user_id</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>客户的用户 ID</p></td></tr><tr><td>client_ip</td><td>String</td><td>15</td><td><p><strong>可选</strong></p><p>客户的 IP 地址 (仅支持IPv4)</p></td></tr><tr><td>user_agent</td><td>String</td><td>512</td><td><p><strong>可选</strong></p><p>客户的用户代理数据（浏览器和操作系统的详细信息）</p></td></tr><tr><td>name</td><td>String</td><td>256</td><td><p><strong>可选</strong></p><p>用户的全名。</p></td></tr><tr><td>id_no</td><td>Number</td><td>14</td><td><p><strong>可选</strong></p><p>巴西/墨西哥/阿根廷的身份证明文件称为 CPF。</p></td></tr><tr><td>document_type</td><td>String</td><td>N/A</td><td><p><strong>可选</strong></p><p>用户文件类型：</p><p>a. Cédula de ciudadanía（公民身份证）。<br>b. Tarjeta de identidad del menor de edad（未成年人身份证）。<br>c. Cédula de extranjería（外国人身份证）。</p></td></tr><tr><td>document_number</td><td>Number</td><td>N/A</td><td><p><strong>可选</strong></p><p>CC - Cédula de ciudadanía（公民身份证）。</p><p>TI - Tarjeta de identidad del menor de edad（未成年人身份证）。</p><p>CE - Cédula de extranjería（外国人身份证）。</p></td></tr></tbody></table>

### v2.0 请求示例

{% tabs %}
{% tab title="带MSISDN 和电子邮件的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "458",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "5",
  "pay_channel": "-77",
  "email": "test@codapayments.com",
  "msisdn": "<Your Number>",
  "items": [
    {
      "code": "1",
      "name": "Test item",
      "price": 3.0
    }
  ],
  "profile": {
    "user_id": "12345"
  }
}
```

{% endtab %}

{% tab title="带用户姓名和身份证号的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "458",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "5",
  "pay_channel": "-77",
  "email": "test@codapayments.com",
  "msisdn": "<Your Number>",
  "items": [
    {
      "code": "1",
      "name": "Test item",
      "price": 3.0
    }
  ],
  "profile": {
        "name":"CodaUser",
        "user_id":"12345",
        "id_no":"88899988811"
  }
}
```

{% endtab %}

{% tab title="不带 MSISDN 和电子邮件的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "458",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "5",
  "pay_channel": "-77"
  "items": [
    {
      "code": "1",
      "name": "Test item",
      "price": 3.0
    }
  ],
  "profile": {
    "user_id": "12345"
  }
}
```

{% endtab %}

{% tab title="带身份证号和类型的示例" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "458",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Codapay",
  "type": "1",
  "pay_type": "5",
  "pay_channel": "255",
  "email": "test@codapayments.com",
  "msisdn": "<Your Number>",
  "items": [
    {
      "code": "1",
      "name": "Test item",
      "price": 300.0,
      "type": "0",
    }
  ],
  "profile": {
    "document_number": "1134568011",
    "user_id": "12345",
    "document_type": "CC"
  }
}
```

{% endtab %}
{% endtabs %}

### v1.0 请求示例

{% tabs %}
{% tab title="带MSISDN 和电子邮件的示例" %}

```json
{
    "api_key":"<YOUR API KEY>",
    "order_id":"<Your Order ID>",
    "lang":"en",
    "merchant_name":"Koko eBooks",
    "pay_type":"5",
    "pay_channel":"20",
    "type":"1",
    "msisdn":"<phone number>",
    "email":"<email address>" ,
    "items":[{
        "code":"456789",
        "name":"One Day",
        "price":1000.00
    }],
    "profile":{"user_id":"12345"}
}
```

{% endtab %}

{% tab title="带用户姓名和身份证号的示例" %}

```json
{
    "api_key": "<YOUR API KEY>",
    "order_id": "<Your Order ID>",
    "lang": "en",
    "merchant_name": "Koko eBooks",
    "type": "1",
    "pay_type": "5",
    "pay_channel": "98",
    "email": "test@codapayments.com",
    "msisdn": "123432",
    "items": [
        {
            "code": "1",
            "name": "One Day",
            "price": 3
        }
    ],
    "profile":{"name":"CodaUser","user_id":"12345","id_no":"88899988811"}
}js
```

{% endtab %}

{% tab title="不带 MSISDN 和电子邮件的示例" %}

```json
{
    "api_key":"<YOUR API KEY>",
    "order_id":"<Your Order ID>",
    "lang":"en",
    "merchant_name":"Koko eBooks",
    "pay_type":"5",
    "pay_channel":"39",
    "type":"1",
    "items":[{
        "code":"456789",
        "name":"One Day",
        "price":1000.00
    }],
    "profile":{"user_id":"12345"}
}
```

{% endtab %}

{% tab title="带身份证号和类型的示例" %}

```json
{
  "api_key": "<YOUR API KEY>",
  "order_id": "<Your Order ID>",
  "lang": "en",
  "pay_type": "5",
  "pay_channel": "255",
  "email": "test@codapayments.com",
  "type": "1",
  "merchant_name": "Koko eBooks",
  "items": [
    {
      "code": "1",
      "name": "Free Fire",
      "price": "1000.0",
      "type": "0",
    }
  ],
  "profile": {
    "document_number": "1134568011",
    "user_id": "12345",
    "document_type": "CC"
  }
}
```

{% endtab %}
{% endtabs %}

## 响应参数

<table><thead><tr><th width="153.33333333333331">参数</th><th width="141">类型</th><th width="94">长度</th><th>描述</th></tr></thead><tbody><tr><td>result_code</td><td>Number</td><td>N/A</td><td><p>ResultCode将帮助指示交易的状态。<br></p><p><code>ResultCode = 0</code> 表示交易成功。<br><br>错误代码列表请参阅 <a data-mention href="/pages/Ijfanb3Eb2mtXRsbF81n">/pages/Ijfanb3Eb2mtXRsbF81n</a></p></td></tr><tr><td>result_desc</td><td>String</td><td>512</td><td>如果resultCode返回错误，则该值描述错误信息。</td></tr><tr><td>txn_id</td><td>Number</td><td>N/A</td><td>支付请求发起返回的Coda订单ID。</td></tr><tr><td>txn_timeout</td><td>Number</td><td>N/A</td><td>交易超时时间（分钟）</td></tr><tr><td>total_price</td><td>Number</td><td>N/A</td><td>用户支付的总金额，以本地货币计价。</td></tr><tr><td>pay_instructions</td><td>String</td><td>15</td><td>如果响应返回了此值，商家应在页面上向客户显示提供的支付指引。</td></tr><tr><td>profile</td><td>Number</td><td>N/A</td><td>请参考 <a data-mention href="#profile-zi-duan-1">#profile-zi-duan-1</a></td></tr></tbody></table>

## Profile 字段

<table><thead><tr><th width="172">参数</th><th width="123">类型</th><th width="104.33333333333331">长度</th><th>描述</th></tr></thead><tbody><tr><td>extInfoByte</td><td>Number</td><td>N/A</td><td>请忽略此字段。</td></tr><tr><td>redirect_url</td><td>String</td><td>128</td><td><p>仅当所选支付渠道遵循重定向 URL 流程时，才返回支付网关的重定向 URL。</p><p></p><p>例如：泰国 Rabbit Line Pay。</p></td></tr><tr><td>merchantType</td><td>String</td><td>128</td><td>这请忽略此字段。</td></tr><tr><td>qr_code_url</td><td>String</td><td>128</td><td><p>仅当所选支付渠道支持 QR 码流程时，才会返回支付网关的 QR 码 URL。</p><p></p><p>例如：马来西亚 Touch &#x26; Go 电子钱包。</p></td></tr></tbody></table>

## 响应示例

{% tabs %}
{% tab title="带MSISDN 和电子邮件的示例" %}

```json
{
   "txn_id": <coda transaction ID>,
   "txn_timeout": 20,
   "result_code": 431,
   "result_desc": "Please wait a few minutes for your transaction to be completed. Need Help? Visit our <a href=“http://bit.ly/idCODAhelp” target=“_blank”>Help Center</a>.",
   "total_price": 1000.0,
   "pay_instructions": "",
   "profile": {
        "extInfoByte": "11",
        "user_id": "12345",
        "merchantType": "Codapay",
        "payment_code": ""
    }
}
```

{% endtab %}

{% tab title="带用户姓名和身份证号的示例" %}

```json
{
    "txn_id": <coda transaction ID>,
    "txn_timeout": 1445,
    "result_code": 431,
    "result_desc": null,
    "total_price": 3.03,
    "pay_instructions": "",
    "profile": {
        "extInfoByte": "0",
        "id_no": "88899988811",
        "user_id":"12345",
        "redirect_url": "https://homolog.latamgateway.com/picpay/finish/8053d22c-2e78-4c2d-bd20-da32014440f1",
        "payment_code": ""
    }
}
```

{% endtab %}

{% tab title="不带 MSISDN 和电子邮件的示例" %}

```json
{
    "txn_id": <coda transaction ID>,
    "txn_timeout": 11,
    "result_code": 0,
    "result_desc": null,
    "total_price": 1000.0,
    "pay_instructions": "",
    "profile": {
        "redirect_url": "https://linkaja/checkout/payment?message=LS0tLS1CRUdJTiBQR1AgTUVTU0FHRS0tLS0tClZlcnNpb246IEJDUEcgdjEu",
        "extInfoByte": "0",
        "payment_code": ""
    }
}
```

{% endtab %}

{% tab title="带身份证号和类型的示例" %}

```json
{
    "txn_id": <coda transaction ID>,
    "txn_timeout": 17,
    "result_code": 431,
    "total_price": 1000.0,
    "pay_instructions": "",
    "profile": {
        "extInfoByte": "0",
        "document_number": "1134568011",
        "user_id": "12345",
        "merchantType": "Codapay",
        "redirect_url": "https://cdn.safecharge.com/safecharge_resources/v1/validation-code-72309.html?notifyUrl=https%3A%2F%2Fapm.safecharge.com%2FApmConnector%2F8192341EAC1F4C9C3AAC718DA1F1AB22&locale=en_CO",
        "document_type": "CC",
        "payment_code": ""
    }
}
```

{% endtab %}
{% endtabs %}

{% hint style="warning" %} <mark style="color:orange;">**USD 订单交易参考**</mark>&#x20;

请查看[此指南](/https-coda-payments.gitbook.io-zhong-wen-coda-private-technical-documentation/codapay/hou-duan-api-ji-cheng/hou-duan-fei-ka-pian-api-ji-cheng/usd-ding-dan-jiao-yi-gai-lan.md)，了解更多关于 USD 交易的信息。
{% endhint %}


---
