# 卡支付

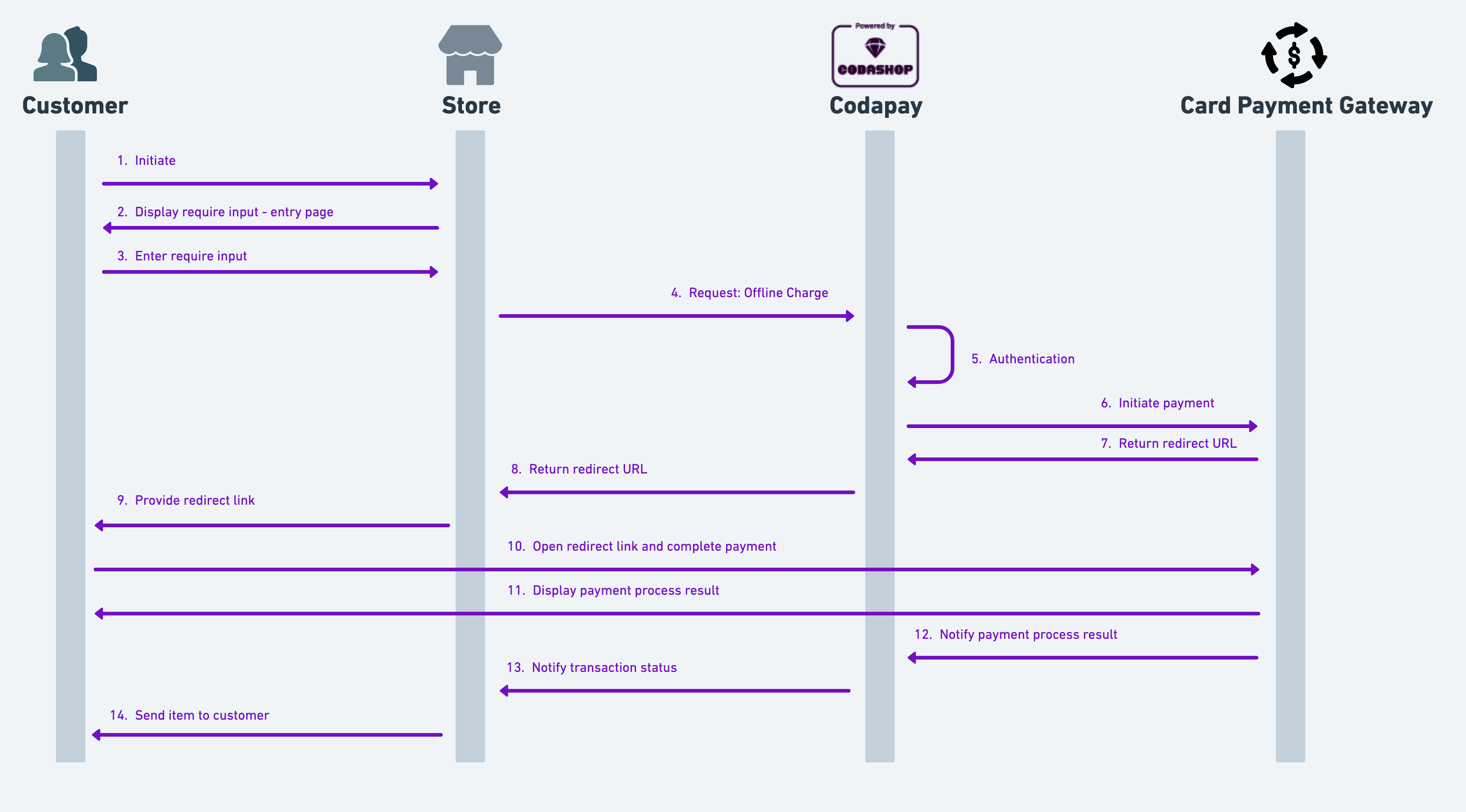

## 卡支付调用流程

客户可以使用借记卡或信用卡支付订单。授权方式根据支付渠道不同而有所不同，例如直接在 Coda 支付页面输入卡信息并进行 3DS 身份验证，或被重定向到渠道提供商的页面。

<figure><img src="/files/Tu1iCiXuyO6EBNMGNIXH" alt=""><figcaption></figcaption></figure>

## 请求参数

<table><thead><tr><th width="148">参数</th><th width="95">类型</th><th width="116">长度</th><th>描述</th></tr></thead><tbody><tr><td>api_key</td><td>String</td><td>256</td><td><strong>必填</strong><br>Coda提供的API密钥 - 请参考 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解如何获取。</td></tr><tr><td>project_id</td><td>String</td><td>10</td><td><strong>此字段仅适用于 v2.0 API，必填项</strong><br>由 Coda 提供的 Project ID，对每个标题产品都是唯一的。<br>请参阅 <a data-mention href="/pages/Knn2G4Gd1ZPSUbSS0PUS">/pages/Knn2G4Gd1ZPSUbSS0PUS</a> 了解</td></tr><tr><td>order_id</td><td>String</td><td>64</td><td><p><strong>必填</strong></p><p>您在支付请求发起时传递的订单ID</p></td></tr><tr><td>country</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>ISO 3166 的国家代码 <a data-mention href="/pages/7B3qZnefeSwkSs84sKuB">/pages/7B3qZnefeSwkSs84sKuB</a></td></tr><tr><td>lang</td><td>String</td><td>2</td><td><p><strong>必填</strong></p><p><a data-mention href="/pages/lumiE4ZV7er3NqdusLTc">/pages/lumiE4ZV7er3NqdusLTc</a></p></td></tr><tr><td>type</td><td>Number</td><td>1</td><td><p>1：数字内容物品</p><p>2：非数字内容物品</p></td></tr><tr><td>pay_type</td><td>Number</td><td>1</td><td><p><strong>必填</strong></p><p>卡支付使用 <code>pay_type = 6</code>。<br><br>更多详情请参阅 <a data-mention href="/pages/9qMfw9ltzzDp2UjOhCld">/pages/9qMfw9ltzzDp2UjOhCld</a></p></td></tr><tr><td>pay_channel</td><td>Number</td><td>3</td><td>每个支付渠道的代码。</td></tr><tr><td>merchant_name</td><td>String</td><td>128</td><td><p><strong>可选</strong><br>如果您希望指定商家名称，请在此字段中输入名称。</p><p><br>默认值为空。</p></td></tr><tr><td>items</td><td>ItemInfo</td><td>N/A</td><td><p><strong>必填</strong></p><p>用户购买的商品列表</p></td></tr><tr><td>items[].code</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商家的商品代码</p></td></tr><tr><td>items[].name</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>商品名称，仅支持拉丁字符</p></td></tr><tr><td>items[].price</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>已含税的商品价格（已含税），以请求中指定的货币计价</td></tr><tr><td>items[].type</td><td>Number</td><td>N/A</td><td><strong>必填</strong><br>默认值=1</td></tr><tr><td>profile</td><td>Map</td><td>N/A</td><td><strong>必填</strong><br><a data-mention href="#profile-zi-duan">#profile-zi-duan</a></td></tr></tbody></table>

## Profile 字段

<table><thead><tr><th width="146">参数</th><th width="106">类型</th><th width="110">长度</th><th>描述</th></tr></thead><tbody><tr><td>user_id</td><td>String</td><td>128</td><td><p><strong>必填</strong></p><p>客户的用户 ID</p></td></tr><tr><td>client_ip</td><td>String</td><td>15</td><td><strong>可选</strong><br>客户的 IP 地址 (仅支持IPv4)</td></tr><tr><td>name</td><td>String</td><td>128</td><td><strong>可选</strong><br>客户姓名</td></tr><tr><td>user_agent</td><td>String</td><td>512</td><td><p><strong>可选</strong></p><p>客户的用户代理数据（浏览器和操作系统的详细信息）</p></td></tr></tbody></table>

### 请求示例

{% tabs %}
{% tab title="v2.0 请求" %}

```json
{
  "project_id": "1", //此字段仅适用于 2.0 API
  "country": "360",
  "api_key": "test_e944d44f065eade8157737385a09",
  "order_id": "<Your OrderID>",
  "lang": "en",
  "merchant_name": "Koko eBooks",
  "type": "1",
  "pay_type": "6",
  "email": "test@coda.co",
  "msisdn": "<Your number>",
  "items": [
    {
      "code": "1",
      "name": "Test Item",
      "price": 1000.0
    }
  ],
  "profile": {
    "user_id": "12345",
    "name": "Test"
  }
}
```

{% endtab %}

{% tab title="v1.0 请求" %}

```json
{
  "api_key": "<Your APIKey>",
  "order_id": "<Your Order ID>",
  "lang": "en",
  "merchant_name": "Koko eBooks",
  "type": "1",
  "pay_type": "6",
  "pay_channel": "-14",
  "email": "test@coda.co",
  "items": [
    {
      "code": "9",
      "name": "Killing",
      "price": 150
    }
  ],
  "profile": {
    "user_id": "Testuser397"
  }
}
```

{% endtab %}
{% endtabs %}

## 响应参数

<table><thead><tr><th width="153.33333333333331">参数</th><th width="141">类型</th><th width="94">长度</th><th>描述</th></tr></thead><tbody><tr><td>result_code</td><td>Number</td><td>N/A</td><td><p>ResultCode将帮助指示交易的状态。<br></p><p><code>ResultCode = 0</code> 表示交易成功。<br><br>错误代码列表请参阅 <a data-mention href="/pages/Ijfanb3Eb2mtXRsbF81n">/pages/Ijfanb3Eb2mtXRsbF81n</a></p></td></tr><tr><td>result_desc</td><td>String</td><td>512</td><td>如果resultCode返回错误，则该值描述错误信息。</td></tr><tr><td>txn_id</td><td>Number</td><td>N/A</td><td>支付请求发起返回的Coda订单ID。</td></tr><tr><td>txn_timeout</td><td>Number</td><td>N/A</td><td>交易超时时间（分钟）</td></tr><tr><td>total_price</td><td>Number</td><td>N/A</td><td>用户支付的总金额，以本地货币计价。</td></tr><tr><td>pay_instructions</td><td>String</td><td>15</td><td>如果响应返回了此值，商家应在页面上向客户显示提供的支付指引。</td></tr><tr><td>profile</td><td>Object</td><td>N/A</td><td>请参考 <a data-mention href="#profile-zi-duan-1">#profile-zi-duan-1</a></td></tr></tbody></table>

## Profile 字段

<table data-full-width="false"><thead><tr><th width="169">参数</th><th width="165">类型</th><th width="107.33333333333331">长度</th><th>描述</th></tr></thead><tbody><tr><td>redirect_url</td><td>String</td><td>128</td><td>仅当所选支付渠道遵循重定向 URL 流程时，才返回支付网关的重定向 URL。</td></tr><tr><td>merchantType</td><td>String</td><td>128</td><td>请忽略此字段。</td></tr><tr><td>user_id</td><td>String</td><td>128</td><td>客户的用户 ID</td></tr><tr><td>payment_code</td><td>Number</td><td>N/A</td><td>由支付渠道生成的代码。</td></tr></tbody></table>

### 响应示例

{% tabs %}
{% tab title="示例" %}

```json
{
    "txn_id": <Coda Transaction ID>,
    "txn_timeout": 26,
    "result_code": 0,
    "total_price": 150.0,
    "pay_instructions": "",
    "profile": {
        "user_id": "Testuser397",
        "merchantType": "Codapay",
        "redirect_url": "sample_URL.com",
        "payment_code": ""
    }
}

```

{% endtab %}
{% endtabs %}

{% hint style="warning" %}
&#x20;<mark style="color:orange;">**USD 订单交易参考**</mark>

请查看[此指南](https://coda-payments.gitbook.io/zhong-wen-coda-private-technical-documentation/codapay/hou-duan-api-ji-cheng/usd-mei-jin)，了解更多关于 USD 交易的信息。
{% endhint %}


---
